IRS4426 - DUAL LOW SIDE DRIVER

International Rectifier

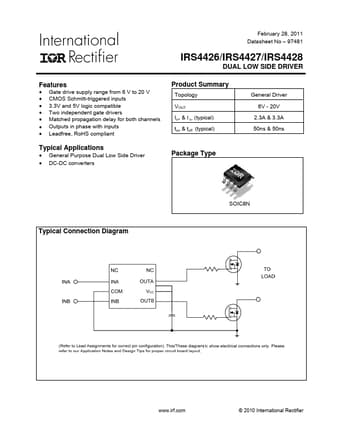

IRS4426 Datasheet Preview — Preview of IRS4426 PDF

Datasheet Details

Part number	IRS4426
Manufacturer	International Rectifier ↗
File Size	365.75 KB
Description	DUAL LOW SIDE DRIVER
Datasheet	IRS4426-InternationalRectifier.pdf

IRS4426 Product details

Description

Qualification Information Absolute Maximum Ratings Recommended Operating Conditions Static Electrical Characteristics Dynamic Electrical Characteristics Functional Block Diagram Input/Output Pin Equivalent Circuit Diagram Lead Definitions Lead Assignments Application Information and Additional Details Package Details: SOIC8 Package Details: SOIC8, Tape and Reel Part Marking Information Ordering Information IRS4426/IRS4427/IRS4428 Page 1 3 4 5 5 6 7 8 10 11 11 12 14 15 16 17 www.irf.com © 2010

Features

Gate drive supply range from 6 V to 20 V.
CMOS Schmitt-triggered inputs.
3.3V and 5V logic compatible.
Two independent gate drivers.
Matched propagation delay for both channels.
Outputs in phase with inputs.
Leadfree, RoHS compliant Typical.
