IRS4427, IRS4426 Datasheet - International Rectifier

IRS4427, IRS4426, DUAL LOW SIDE DRIVER

February 28, 2011 Datasheet No * 97481 IRS4426/IRS4427/IRS4428 DUAL LOW SIDE DRIVER .
Qualification Information Absolute Maximum Ratings Recommended Operating Conditions Static Electrical Characteristics Dynamic Electrical Characteristi.

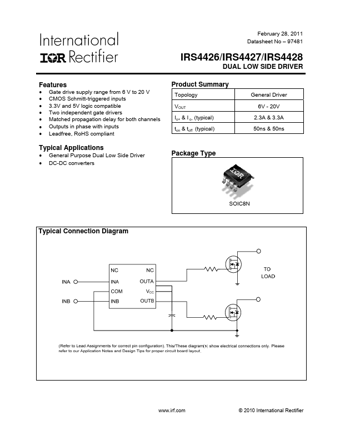

datasheet Preview Page 1 from Datasheet4u.com

IRS4426-InternationalRectifier.pdf

IRS4427 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS4427, IRS4426. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRS4427, IRS4426

Manufacturer:

International Rectifier

File Size:

365.75 KB

Description:

DUAL LOW SIDE DRIVER

Note:

This datasheet PDF includes multiple part numbers: IRS4427, IRS4426.
Please refer to the document for exact specifications by model.

Features

* Gate drive supply range from 6 V to 20 V
* CMOS Schmitt-triggered inputs
* 3.3V and 5V logic compatible
* Two independent gate drivers
* Matched propagation delay for both channels
* Outputs in phase with inputs
* Leadfree, RoHS compliant Typ

Applications

* General Purpose Dual Low Side Driver
* DC-DC converters Product Summary Topology VOUT Io+ & I o- (typical) ton & toff (typical) Package Type General Driver 6V - 20V 2.3A & 3.3A 50ns & 50ns Typical Connection Diagram SOIC8N www. irf. com © 2010 International Rectifier Table of
