JANS1N7038U3

SCHOTTKY RECTIFIER

JANS1N7038U3 Datasheet (100.64 KB)

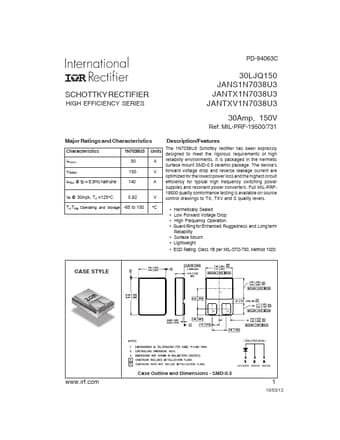

Preview of JANS1N7038U3 PDF

Datasheet Details

Part number:

JANS1N7038U3

Manufacturer:

International Rectifier

File Size:

100.64 KB

Description:

Schottky rectifier.
PD-94063C SCHOTTKY RECTIFIER HIGH EFFICIENCY SERIES 30LJQ150 JANS1N7038U3 JANTX1N7038U3 JANTXV1N7038U3 30Amp, 150V Ref: MIL-PRF-19500/731 Major Rat.

JANS1N7038U3 Features

* Characteristics IF(AV) VRRM IFSM @ tp = 8.3ms half-sine VF @ 30Apk, TJ =125°C 1N7038U3 30 150 140 0.92 Units A V A V The 1N7038U3 Schottky rectifier has been expressly designed to meet the rigorous requirements of high reliability environments. It is packaged in the hermetic surface mount SMD-0.
