T85HFL80

FAST RECOVERY DIODES

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Vishay Semiconductors VS-T85HFL80S05 DIODE STANDARD 800V 85A D55 DigiKey 0 10 units
$30.56

T85HFL80 Datasheet (218.45 KB)

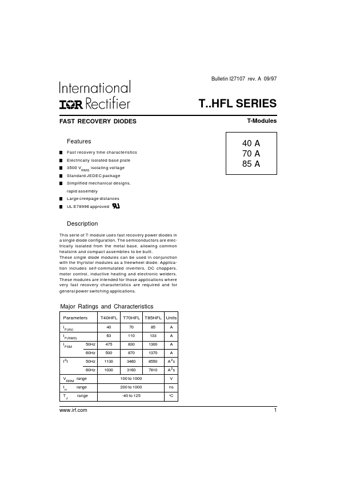

Preview of T85HFL80 PDF

Datasheet Details

Part number:

T85HFL80

Manufacturer:

International Rectifier

File Size:

218.45 KB

Description:

Fast recovery diodes.

T85HFL80 Features

* Fast recovery time characteristics Electrically isolated base plate 3500 VRMS isolating voltage Standard JEDEC package Simplified mechanical designs, rapid assembly Large creepage distances UL E78996 approved Description This serie of T-module uses fast recovery power diodes in a single diode confi

T85HFL80 General Description

This serie of T-module uses fast recovery power diodes in a single diode configuration. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assemblies to be built. These single diode modules can be used in conjunction with the thyristor modules as a.
