26MB20A

SINGLE PHASE BRIDGE

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Vishay Intertechnologies 26MB20A Bridges - MB - Bulk (Alt: VS-26MB20A) Avnet Americas 0 160 units
$4.4

26MB20A Datasheet (46.92 KB)

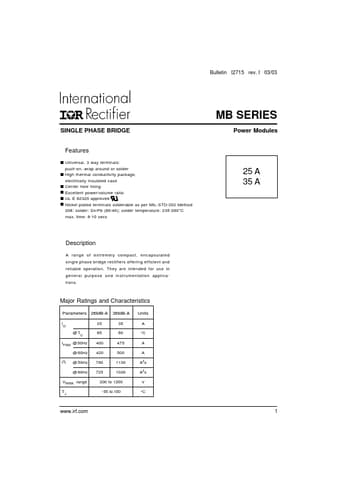

Preview of 26MB20A PDF

Datasheet Details

Part number:

26MB20A

Manufacturer:

InternationalRectifier

File Size:

46.92 KB

Description:

Single phase bridge.

26MB20A Features

* Universal, 3 way terminals: push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio UL E 62320 approved Nickel plated terminals solderable as per MIL-STD-202 Method 208; solder: Sn/Pb (60/40); solder temperature: 2

26MB20A General Description

A range of extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and instrumentation applications. Major Ratings and Characteristics Parameters 26MB-A IO @ TC IFSM @ 50Hz @ 60Hz It 2 36MB-A 35 60 475 5.
