26MB40A

SINGLE PHASE BRIDGE

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Vishay Semiconductors VS-26MB40A BRIDGE RECT 1PHASE 400V 25A D-34 DigiKey 0 500 units
$4.47

26MB40A Datasheet (46.92 KB)

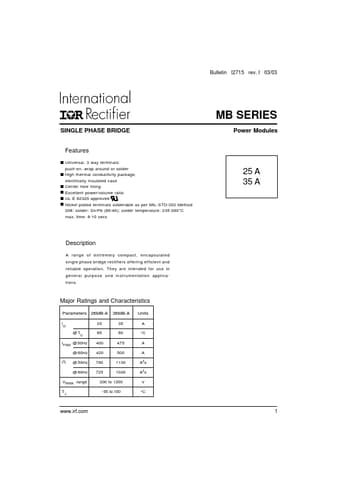

Preview of 26MB40A PDF Datasheet

Datasheet Details

Part number:

26MB40A

Manufacturer:

InternationalRectifier

File Size:

46.92 KB

Description:

Single phase bridge

26MB40A Features

* Universal, 3 way terminals: push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio UL E 62320 approved Nickel plated terminals solderable as per MIL-STD-202 Method 208; solder: Sn/Pb (60/40); solder temperature: 2

26MB40A General Description

A range of extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and instrumentation applications. Major Ratings and Characteristics Parameters 26MB-A IO @ TC IFSM @ 50Hz @ 60Hz It 2 36MB-A 35 60 475 5.
