26MB60A Datasheet - InternationalRectifier

26MB60A, SINGLE PHASE BRIDGE

Bulletin I2715 rev.I 03/03 MB SERIES SINGLE PHASE BRIDGE .
A range of extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation.

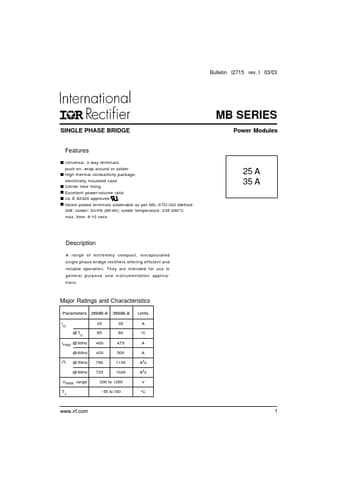

datasheet Preview Page 1 from Datasheet4u.com

26MB60A_InternationalRectifier.pdf

26MB60A Datasheet Preview — Preview of 26MB60A PDF

Datasheet Details

Part number:

26MB60A

Manufacturer:

InternationalRectifier

File Size:

46.92 KB

Description:

SINGLE PHASE BRIDGE

Features

* Universal, 3 way terminals: push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio UL E 62320 approved Nickel plated terminals solderable as per MIL-STD-202 Method 208; solder: Sn/Pb (60/40); solder temperature: 2

Applications

* Major Ratings and Characteristics Parameters 26MB-A IO @ TC IFSM @ 50Hz @ 60Hz It 2 36MB-A 35 60 475 500 1130 1030 Units A o 25 65 400 420 790 725 C A A A2 s A2 s V o @ 50Hz @ 60Hz VRRM range TJ 200 to 1200 - 55 to 150 C www. irf. com 1 MB Series Bulletin I2715 rev. I 03/03 ELECTRICAL S
