OPTO-3001 Datasheet (Interoptics) - Transceiver / Digital Data Links

OPTO-3001, Transceiver / Digital Data Links

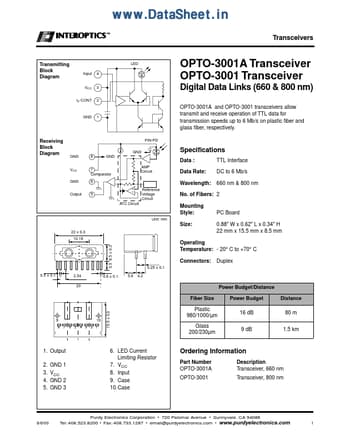

Transceiver, 660 nm Transceiver, 800 nm 6/6/00 Purdy Electronics Corporation * 720 Palomar Avenue * Sunnyvale, CA 94086 Tel: 408.523.8200 * Fax: 408.733.1287 * email@purdyelectronics.com * www.purdyelectronics.com 1

Transceivers Transmitting Block Diagram LED Input 4 OPTO-3001A Transceiver OPTO-3001 Transceiver Digital Data Links (660 & 800 nm) OPTO-3001A and OPTO-3001 transceivers allow transmit and receive operation of TTL data for transmission speeds up to 6 Mb/s on plastic ﬁber and glass ﬁber, respectively.

PIN-PD VCC IF-CONT 3 2 GND 1 Receiving Block Diagram GND GND VCC GND Output 8 GND AMP Circuit Speciﬁcations Data : Data Rate: Wavelength: TTL Interface DC to 6 Mb/s 660 nm & 800 nm 7 Compa
