HR700 - DC/DC CONVERTERS 28 VOLT INPUT

Description

HR700 Series DC/DC converters offer up to 70 watts of power from single, dual, or triple outputs in one package.

Features

  • 40°C to + 85°C operation 19 to 40 VDC input Fully Isolated Optocoupler feedback Fixed frequency, 245 kHz typical Topology.
  • Push-Pull Forward 50 V for up to 50 ms transient protection Inhibit/sync function Indefinite short circuit protection Remote sense on single models Up to 84% efficiency DC/DC.

📥 Download Datasheet

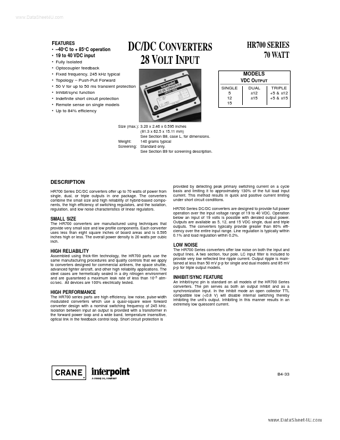

Datasheet preview – HR700

Datasheet Details

Part number HR700
Manufacturer Interpoint Corporation Company
File Size 155.81 KB
Description DC/DC CONVERTERS 28 VOLT INPUT
Datasheet download datasheet HR700 Datasheet
Additional preview pages of the HR700 datasheet.

📁 Similar Datasheet

Other Datasheets by Interpoint Corporation Company

    Full PDF Text Transcription

    Click to expand full text
    www.DataSheet4U.com FEATURES • • • • • • • • • • • –40°C to + 85°C operation 19 to 40 VDC input Fully Isolated Optocoupler feedback Fixed frequency, 245 kHz typical Topology – Push-Pull Forward 50 V for up to 50 ms transient protection Inhibit/sync function Indefinite short circuit protection Remote sense on single models Up to 84% efficiency DC/DC CONVERTERS 28 VOLT INPUT SINGLE 5 12 15 HR700 SERIES 70 WATT MODELS VDC OUTPUT DUAL ±12 ±15 TRIPLE +5 & ±12 +5 & ±15 Size (max.): 3.20 x 2.46 x 0.595 inches (81.3 x 62.5 x 15.11 mm) See Section B8, case L, for dimensions. Weight: 140 grams typical Screening: Standard only. See Section B9 for screening description. DESCRIPTION HR700 Series DC/DC converters offer up to 70 watts of power from single, dual, or triple outputs in one package.
