82C84A, CMOS Clock Generator Driver

® Data Sheet December 6, 2005 82C84A FN2974.3 CMOS Clock Generator Driver The Intersil 82C84A is a high performance CMOS Clock Generator-driver whi.
SYMBOL NUMBER TYPE DESCRIPTION AEN1, 3, 7 AEN2 RDY1, 4, 6 RDY2 ASYNC 15 READY 5 I ADDRESS ENABLE: AEN is an active LOW signal.

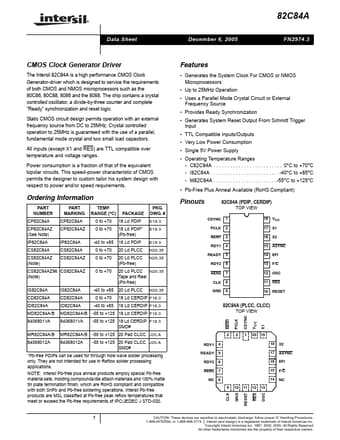

datasheet Preview Page 1 from Datasheet4u.com

82C84A_IntersilCorporation.pdf

82C84A Datasheet Preview — Preview of 82C84A PDF

Datasheet Details

Part number:

82C84A

Manufacturer:

Intersil Corporation

File Size:

285.10 KB

Description:

CMOS Clock Generator Driver

Features

* Generates the System Clock For CMOS or NMOS Microprocessors
* Up to 25MHz Operation
* Uses a Parallel Mode Crystal Circuit or External Frequency Source
* Provides Ready Synchronization
* Generates System Reset Output From Schmitt Trigger Input
* TTL

Applications

* NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified
