AD7533

8-Bit/ Multiplying D/A Converters

AD7533 Features

* 8-Bit, 9-Bit and 10-Bit Linearity

* Low Gain and Linearity Temperature Coefficients

* Full Temperature Range Operation

* Static Discharge Input Protection

* TTL/CMOS Compatible

* Supply Range . . . . . . . . . . . . . . . . . . . . . . . . +5V to +15V

AD7533 General Description

The AD7523 and AD7533 are monolithic, low cost, high performance, 8-bit and 10-bit accurate, multiplying digital-toanalog converter (DAC), in a 16 pin DIP. Intersil’ thin film resistors on CMOS circuitry provide 10-bit resolution (8-bit, 9-bit and 10-bit accuracy), with TTL/CMOS compatible operation..

AD7533 Datasheet (99.11 KB)

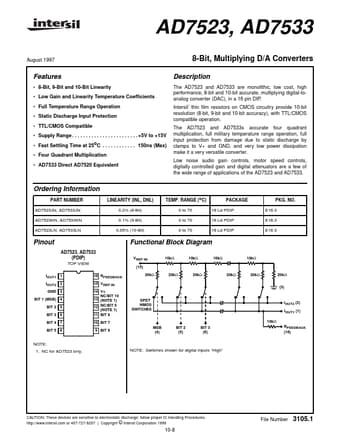

Preview of AD7533 PDF

Datasheet Details

Part number:

AD7533

Manufacturer:

Intersil Corporation

File Size:

99.11 KB

Description:

8-bit/ multiplying d/a converters.
