CA5260 Microprocessor Operational Amplifiers

Intersil Corporation

Description

CA5260, CA5260A November 1996 3MHz, BiMOS Microprocessor Operational Ampliﬁers with MOSFET Input/CMOS Output .
The CA5260A and CA5260 are integrated-circuit operational ampliﬁers that combine the advantage of both CMOS and bipolar transistors on a monolithic ch.

📥 Download Datasheet

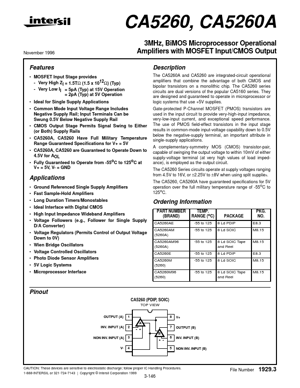

CA5260 Datasheet Preview — Preview of CA5260 PDF

Datasheet Specifications

Part number: CA5260
Manufacturer: Intersil Corporation
File Size: 45.45 KB
Datasheet: CA5260_IntersilCorporation.pdf
Description: Microprocessor Operational Amplifiers

Features

* MOSFET Input Stage provides - Very High ZI = 1.5TΩ (1.5 x 1012Ω) (Typ) - Very Low II = 5pA (Typ) at 15V Operation = 2pA (Typ) at 5V Operation

Applications

* A complementary-symmetry MOS (CMOS) transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA5260 Series circuits operate at supply voltages ranging from 4.5V to 16V, or
