CA5160, CA5, 4MHz/ BiMOS Microprocessor Operational Amplifiers with MOSFET Input/CMOS Output

CT O DU ODUC T R P PR TE O LE TI TU T E S B 0 O S SUB 0, CA313 LE Data B 4 I 1 Sheet S 3 CA P OS ® CA5160 May 2003 FN1924.7 4MHz, BiMOS Microprocess.
Refer to the block diagram of the CA5160 CMOS Operational Amplifier.

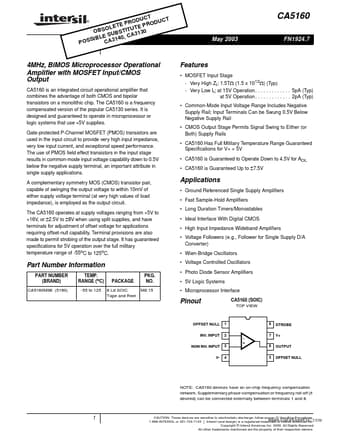

 datasheet Preview Page 1 from Datasheet4u.com

CA5-160.pdf

This datasheet PDF includes multiple part numbers: CA5160, CA5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CA5160, CA5

Manufacturer:

Intersil Corporation

File Size:

656.08 KB

Description:

4MHz/ BiMOS Microprocessor Operational Amplifiers with MOSFET Input/CMOS Output

Note:

This datasheet PDF includes multiple part numbers: CA5160, CA5.
Please refer to the document for exact specifications by model.

Features

* MOSFET Input Stage - Very High ZI; 1.5TΩ (1.5 x 1012Ω) (Typ) - Very Low II; at 15V Operation
* . . . 5pA (Typ) at 5V Operation
* . . . 2pA (Typ)
* Common-Mode Input Voltage Range Includes Negative Supply Rail; Input Terminals Can be Swung 0.5V Below N

Applications

* A complementary symmetry MOS (CMOS) transistor pair, capable of swinging the output voltage to within 10mV of either supply voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA5160 operates at supply voltages ranging from +5V to +16V, or ±2.5V to ±8V w
