CD4008BMS - CMOS 4-Bit Full Adder

Product Overview

Intersil Corporation

Datasheet Details

Part number	CD4008BMS
Manufacturer	Intersil Corporation
File Size	211.87 KB
Description	CMOS 4-Bit Full Adder
Datasheet	CD4008BMS Datasheet

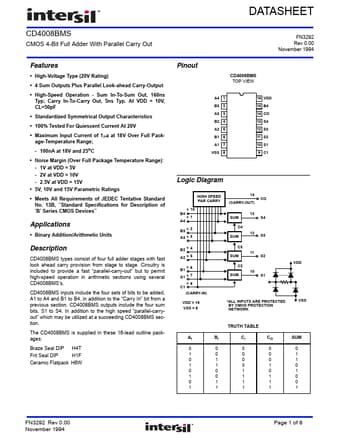

Additional preview pages of the CD4008BMS datasheet.

Product details

Description

of ‘B’ Series CMOS Devices” Applications Binary Addition/Arithmetic Units Description CD4008BMS types consist of four full adder stages with fast look ahead carry provision from stage to stage.Circuitry is included to p

Features

High-Voltage Type (20V Rating).
4 Sum Outputs Plus Parallel Look-ahead Carry-Output.
High-Speed Operation - Sum In-To-Sum Out, 160ns Typ; Carry In-To-Carry Out, 5ns Typ. At VDD = 10V, CL=50pF.
Standardized Symmetrical Output Characteristics.
100% Tested For Quiescent Current At 20V.
Maximum Input Current of 1a at 18V Over Full Package-Temperature Range; - 100nA at 18V and 25oC.
Noise Margin (Over Full Package Temperature Range): -.
