CD4006BMS Datasheet, Register, Intersil Corporation

✔ CD4006BMS Features

Pinout
High-Voltage Type (20V Rating)
Fully Static Operation
Shifting Rates Up to 12MHz at 10V (typ)
Permanent Register Storage with Clock Line High or Low - No

✔ CD4006BMS Application

Serial Shift Registers
Frequency Division
Tim

PDF File Details

Intersil Corporation manufacturer logo

Part number:

CD4006BMS

Manufacturer:

Intersil Corporation

File Size:

76.00kb

Download:

📄 Datasheet

Description:

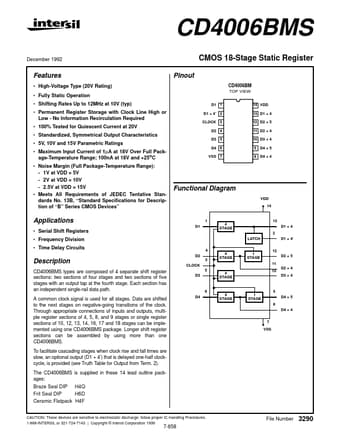

Cmos 18-stage static register. of “B” Series CMOS Devices” CD4006BM TOP VIEW D1 1 D1 + 4’ 2 CLOCK 3 D2 4 D3 5 D4 6 VSS 7 14 VDD 13 D1 + 4 12 D2 + 5 11 D2 + 4 10
