CD4006BM - 18-Stage Static Shift Register

Product Overview

National Semiconductor

Datasheet Details

Part number	CD4006BM
Manufacturer	National Semiconductor
File Size	72.81 KB
Description	18-Stage Static Shift Register
Datasheet	CD4006BM Datasheet

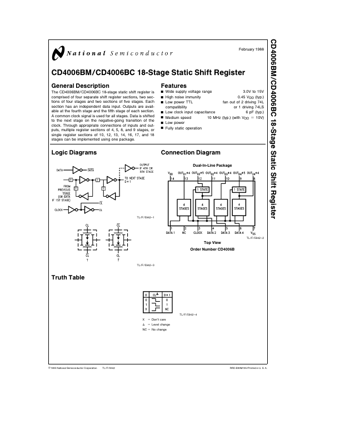

Additional preview pages of the CD4006BM datasheet.

Product details

Description

The CD4006BM CD4006BC 18-stage static shift register is comprised of four separate shift register sections two sections of four stages and two sections of five stages Each section has an independent data input Outputs are available at the fourth stage and the fifth stage of each section A common clock signal is used for all stages Data is shifted to the next stage on the negative-going transition of the clock Through appropriate connections of inputs and outputs multiple register sections of 4 5

Features

Y Wide supply voltage range 3 0V to 15V Y High noise immunity Y Low power TTL compatibility 0 45 VDD (typ ) fan out of 2 driving 74L or 1 driving 74LS Y Low clock input capacitance 6 pF (typ ) Y Medium speed Y Low power 10 MHz (typ.
