CD4006BC

18-Stage Static Shift Register

CD4006BC Features

* Y Y Y Y Y Y Y Wide supply voltage range 3 0V to 15V High noise immunity 0 45 VDD (typ ) Low power TTL fan out of 2 driving 74L compatibility or 1 driving 74LS Low clock input capacitance 6 pF (typ ) Medium speed 10 MHz (typ ) (with VDD e 10V) Low power Fully static operation Logic Diagrams Conne

CD4006BC General Description

The CD4006BM CD4006BC 18-stage static shift register is comprised of four separate shift register sections two sections of four stages and two sections of five stages Each section has an independent data input Outputs are available at the fourth stage and the fifth stage of each section A common clo.

CD4006BC Datasheet (112.69 KB)

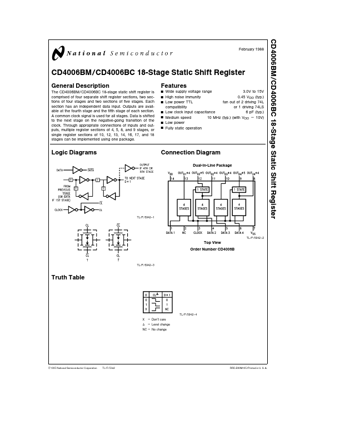

Preview of CD4006BC PDF

Datasheet Details

Part number:

CD4006BC

Manufacturer:

National Semiconductor

File Size:

112.69 KB

Description:

18-stage static shift register.
