CD4002C

Dual 4-Input NOR(NAND) Gate

CD4002C Features

* Y Y Y Wide supply voltage range Low power High noise immunity 3 0V to 15V 10 nW (typ ) 0 45 VDD (typ ) Applications Y Y Y Y Automotive Data terminals Instrumentation Medical Electronics Y Y Y Y Alarm system Industrial controls Remote metering Computers Connection Diagrams CD4002 Dual-In-Line

CD4002C General Description

These NOR and NAND gates are monolithic complementary MOS (CMOS) integrated circuits The N- and P-channel enhancement mode transistors provide a symmetrical circuit with output swings essentially equal to the supply voltage This results in high noise immunity over a wide supply voltage range No DC p.

CD4002C Datasheet (107.87 KB)

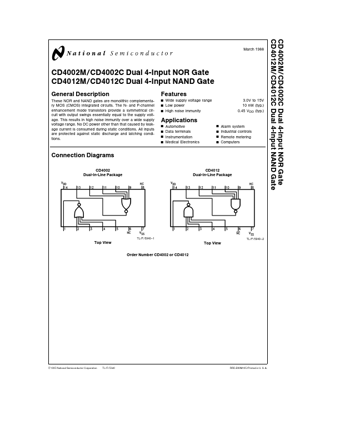

Preview of CD4002C PDF

Datasheet Details

Part number:

CD4002C

Manufacturer:

National Semiconductor

File Size:

107.87 KB

Description:

Dual 4-input nor(nand) gate.
CD4002M CD4002C Dual 4-Input NOR Gate CD4012M CD4012C Dual 4-Input NAND Gate March 1988 CD4002M CD4002C Dual 4-Input NOR Gate CD4012M CD4012C Dual 4.
