CD4001BC - NOR Buffered B Series Gate

This page provides the datasheet information for the CD4001BC, a member of the CD4001BM NOR Buffered B Series Gate family.

Datasheet Summary

Description

These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors They have equal source and sink current capabilities and conform to standard B series output drive The devices also have buffered outputs which improve transfer

Features

Y Low power TTL compatibility Fan out of 2 driving 74L or 1 driving 74LS Y 5V.
10V.
15V parametric ratings Y Symmetrical output characteristics Y Maximum input leakage 1 mA at 15V over full temperature range Schematic Diagrams CD4001BC BM of device shown JeAaB Logical ‘‘1’’ e High Logical ‘‘0’’ e Low TL F 5939.
1 C1995 National Semiconductor Corporation TL F 5939 TL F 5939.
5 TL F 5939.
2 All inputs protected by standard CMOS protection c.

Datasheet Details

Part number	CD4001BC
Manufacturer	National Semiconductor
File Size	156.30 KB
Description	NOR Buffered B Series Gate
Datasheet	CD4001BC Datasheet

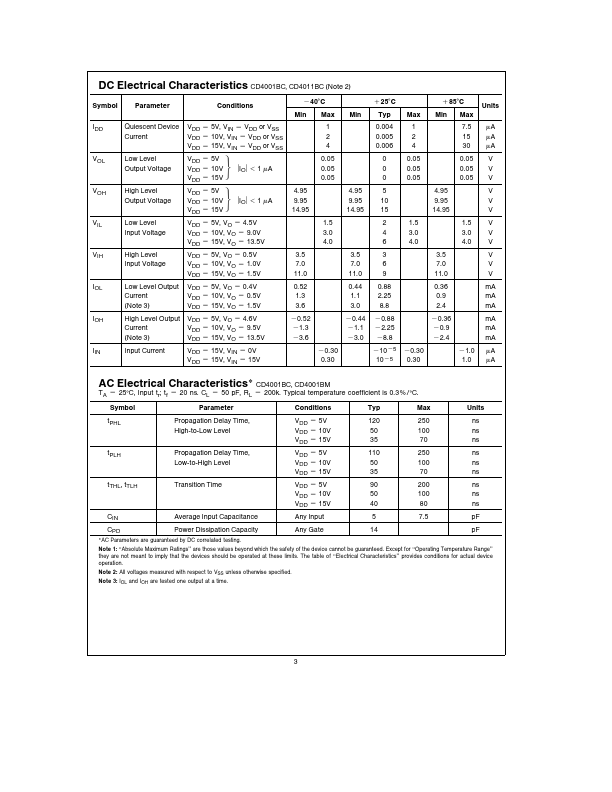

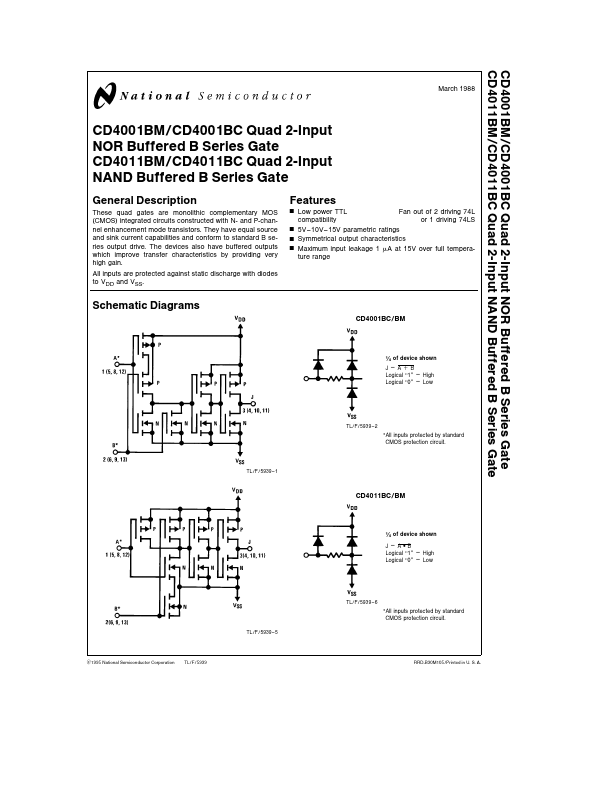

Additional preview pages of the CD4001BC datasheet.

📁 Similar Datasheet

CD4001BC - Quad 2-Input NOR Gate (Fairchild)

CD4001B - CMOS NOR Gate (RCA)

CD4001B - CMOS NOR Gates (Texas Instruments)

CD4001BE - CMOS NOR Gates (Texas Instruments)

CD4001BF3A - CMOS NOR Gates (Texas Instruments)

CD4001BM - CMOS NOR Gates (Texas Instruments)

CD4001BMS - CMOS NOR Gate (Intersil Corporation)

CD4001A - CMOS NOR Gate (RCA)

CD4001UB - CMOS NOR Gate (RCA)

CD4001UB - CMOS Quad 2-Input NOR Gate (Texas Instruments)

Full PDF Text Transcription

Click to expand full text

CD4001BM CD4001BC Quad 2-Input NOR Buffered B Series Gate CD4011BM CD4011BC Quad 2-Input NAND Buffered B Series Gate March 1988 CD4001BM CD4001BC Quad 2-Input NOR Buffered B Series Gate CD4011BM CD4011BC Quad 2-Input NAND Buffered B Series Gate General Description These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors They have equal source and sink current capabilities and conform to standard B series output drive The devices also have buffered outputs which improve transfer characteristics by providing very high gain All inputs are protected against static discharge with diodes to VDD and VSS Features Y Low power TTL compatibility Fan out of 2 driving 74L or 1 driving 74LS Y 5V – 10V – 15V paramet
