CD4025BMS - CMOS NOR Gate

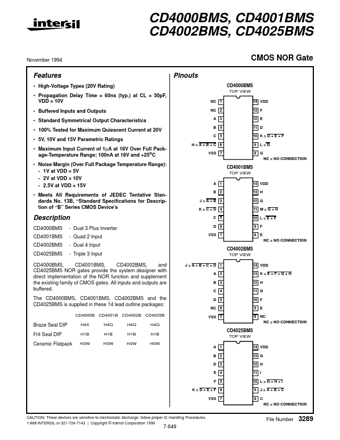

of “B” Series CMOS Device’s CD4001BMS TOP VIEW A 1 B 2 J=A+B 3 K=C+D 4 C 5 D 6 VSS 7 14 VDD 13 H 12 G 11 M = G + H 10 L = E + F 9 F 8 E NC = NO CONNECTION Description CD4000BMS CD4001BMS CD4002BMS CD4025BMS - Dual 3 Plus Inverter - Quad 2 Input - Dual 4 Input - Triple 3 Input CD4002BMS TOP VIEW J.

CD4025BMS Features

* High-Voltage Types (20V Rating)

* Propagation Delay Time = 60ns (typ.) at CL = 50pF, VDD = 10V

* Buffered Inputs and Outputs

* Standard Symmetrical Output Characteristics

* 100% Tested for Maximum Quiescent Current at 20V

* 5V, 10V and 15V Parametric
