CD4043BMS

CMOS Quad 3 State R/S Latche

CD4043BMS Features

* High Voltage Types (20V Rating)

* Quad NOR R/S Latch- CD4043BMS

* Quad NAND R/S Latch - CD4044BMS

* 3 State Outputs with Common Output ENABLE

* Separate SET and RESET Inputs for Each Latch

* NOR and NAND Configuration

* 5V, 10V and 15V Parame

CD4043BMS General Description

of ‘B’ Series CMOS Devices” Pinout Applications

* Holding Register in Multi-Register System

* Four Bits of Independent Storage with Output ENABLE

* Strobed Register

* General Digital Logic

* CD4043BMS for Positive Logic Systems

* CD4044BMS for Negati.

CD4043BMS Datasheet (391.08 KB)

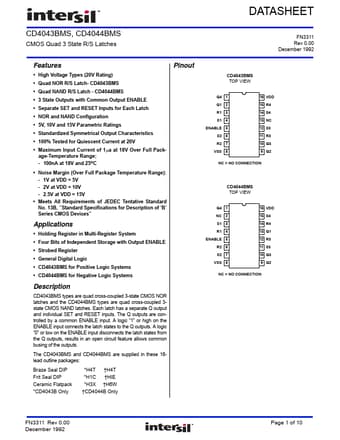

Preview of CD4043BMS PDF

Datasheet Details

Part number:

CD4043BMS

Manufacturer:

Intersil Corporation

File Size:

391.08 KB

Description:

Cmos quad 3 state r/s latche.
