Part number:
CD4043BM
Manufacturer:
National Semiconductor
File Size:
136.33 KB
Description:
Quad tri-state nor(nand) r/s latches.
CD4043BM_NationalSemiconductor.pdf
Datasheet Details

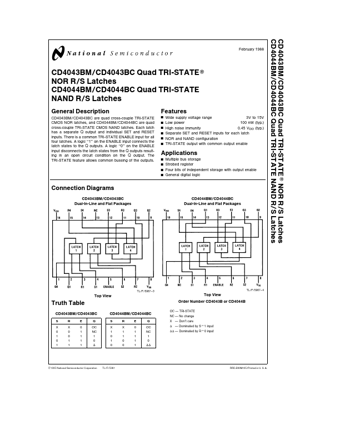

CD4043BM CD4043BC are quad cross-couple TRI-STATE CMOS NOR latches and CD4044BM CD4044BC are quad cross-couple TRI-STATE CMOS NAND latches Each latch has a separate Q output and individual SET and RESET inputs There is a common TRI-STATE ENABLE input for all four latches A logic ‘‘1’’ on the ENABLE
CD4043BM Features
* Y Y Y Y Y Y Wide supply voltage range 3V to 15V Low power 100 nW (typ ) High noise immunity 0 45 VDD (typ ) Separate SET and RESET inputs for each latch NOR and NAND configuration TRI-STATE output with common output enable Applications Y Y Y Y Multiple bus storage Strobed register Four bits of in
