CD4075BMS - CMOS OR Gate

Product Overview

Intersil Corporation

Datasheet Details

Part number	CD4075BMS
Manufacturer	Intersil Corporation
File Size	114.69 KB
Description	CMOS OR Gate
Datasheet	CD4075BMS Datasheet

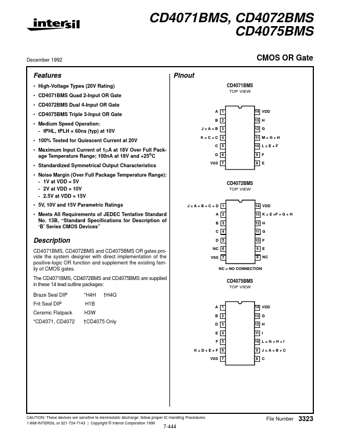

Additional preview pages of the CD4075BMS datasheet.

Product details

Description

of ‘B’ Series CMOS Devices” A 1 B 2 J=A+B 3 K=C+C 4 C 5 D 6 VSS 7 14 VDD 13 H 12 G 11 M = G + H 10 L = E + F 9 F 8 E CD4072BMS TOP VIEW J=A+B+C+D 1 A 2 B 3 C 4 14 VDD 13 K = E +F + G + H 12 H 11 G 10 F 9 E 8 NC Description CD4071BMS, CD4072BMS and CD4075BMS OR gates provide the system designer with direct implementation of the positive-logic OR function and supplement the existing family of CMOS gates.The CD4071BMS, CD4072BMS and CD4075BMS are supplied in these 14 lead outline packages: B

Features

High-Voltage Types (20V Rating).
CD4071BMS Quad 2-Input OR Gate.
CD4072BMS Dual 4-Input OR Gate.
CD4075BMS Triple 3-Input OR Gate.
Medium Speed Operation: - tPHL, tPLH = 60ns (typ) at 10V.
100% Tested for Quiescent Current at 20V.
Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC.
Standardized Symmetrical Output Characteristics.
Noise Margin (Over Full Package Temperatu.
