CD82C83H

CMOS Octal Latching Inverting Bus Driver

CD82C83H Features

* Full 8-Bit Parallel Latching Buffer

* Bipolar 8283 Compatible

* Three-State Inverting Outputs

* Propagation Delay . . . . . . . . . . . . . . . . . . . . . . 25ns Max

* Gated Inputs - Reduce Operating Power - Eliminate the Need for Pull-Up Resistors

CD82C83H General Description

The Intersil 82C83H is a high performance CMOS Octal Latching Buffer manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C83H provides an 8bit parallel latch/buffer in a 20 lead pin package. The active high strobe (STB) input allows transparent transfer of data and la.

CD82C83H Datasheet (105.77 KB)

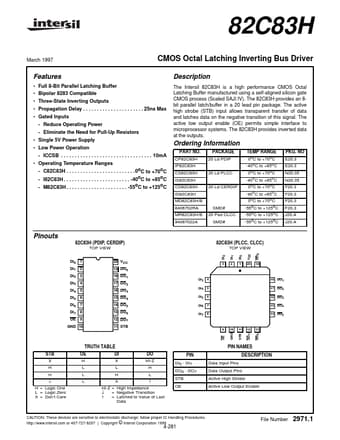

Preview of CD82C83H PDF

Datasheet Details

Part number:

CD82C83H

Manufacturer:

Intersil Corporation

File Size:

105.77 KB

Description:

Cmos octal latching inverting bus driver.
