CD82C84A

CMOS Clock Generator Driver

CD82C84A Features

* Generates the System Clock For CMOS or NMOS Microprocessors

* Up to 25MHz Operation

* Uses a Parallel Mode Crystal Circuit or External Frequency Source

* Provides Ready Synchronization

* Generates System Reset Output From Schmitt Trigger Input

* TTL

CD82C84A General Description

The Intersil 82C84A is a high performance CMOS Clock Generatordriver which is designed to service the requirements of both CMOS and NMOS microprocessors such as the 80C86, 80C88, 8086 and the 8088. The chip contains a crystal controlled oscillator, a divide-bythree counter and complete “Ready” synch.

CD82C84A Datasheet (89.38 KB)

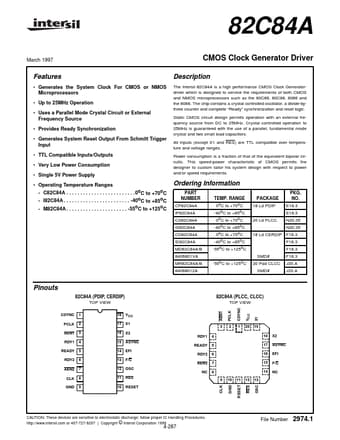

Preview of CD82C84A PDF
