CDP1851C

CMOS Programmable I/O Interface

CDP1851C Features

* 20 Programmable I/O Lines

* Programmable for Operation in Four Modes: - Input - Output - Bidirectional - Bit-programmable

* Operates in Either I/O or Memory Space Ordering Information PACKAGE TEMP. RANGE PDIP Burn-In SBDIP Burn-In 5V 10V PKG. NO. -40oC to +85oC CDP1851CE

CDP1851C General Description

THE CDP1851 and CDP1851C are CMOS programmable twoport I/Os designed for use as general-purpose I/O devices. They are directly compatible with CDP1800-series microprocessors functioning at maximum clock frequency. Each port can be programmed in either byte-I/O or bit-programmable modes for interfaci.

CDP1851C Datasheet (56.88 KB)

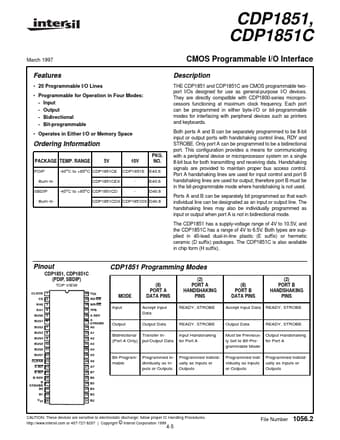

Preview of CDP1851C PDF

Datasheet Details

Part number:

CDP1851C

Manufacturer:

Intersil Corporation

File Size:

56.88 KB

Description:

Cmos programmable i/o interface.
