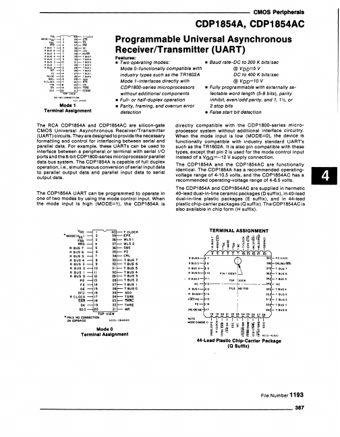

CDP1854AC, CDP1854A Programmable Universal Asynchronous Receiver/Transmitter

Description

'00 MOO(I"oo) 'ss ""Raus 1 R aus 6 Raus !i R8US4 Raus l Raus 2 Reus I R BUS 0 iNT "PEiOE RSEL RCLOCK 'S"O", .,, 9 '0 "12 """",".",""0 29 " '"""".

📥 Download Datasheet

CDP1854AC Datasheet Preview — This datasheet PDF includes multiple part numbers: CDP1854AC, CDP1854A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CDP1854AC, CDP1854A
Manufacturer: GE
File Size: 1.14 MB
Datasheet: CDP1854A-GE.pdf
Description: Programmable Universal Asynchronous Receiver/Transmitter
Note: This datasheet PDF includes multiple part numbers: CDP1854AC, CDP1854A.
Please refer to the document for exact specifications by model.

Features

* Two operating modes:
* Baud rate-DC to 200 K bits/sec Mode O-functionally compatible with @ VDD=5 V industry types such as the TR1602A DC to 400 K bits/sec Mode 1-interfaces directly with @ VDD=10 V CDP1800-series microprocessors
* Fully programmable with externall
