CG80C286-16 - High Performance Microprocessor with Memory Management and Protection

Intersil Corporation

Datasheet Details

Part number	CG80C286-16
Manufacturer	Intersil Corporation
File Size	365.46 KB
Description	High Performance Microprocessor with Memory Management and Protection

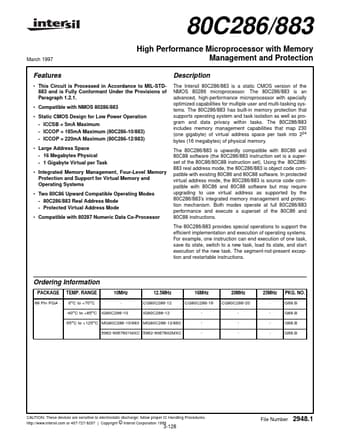

Datasheet	CG80C286-16_IntersilCorporation.pdf

The Intersil 80C286/883 is a static CMOS version of the NMOS 80286 microprocessor.

This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
Compatible with NMOS 80286/883.
Static CMOS Design for Low Power Operation - ICCSB = 5mA Maximum - ICCOP = 185mA Maximum (80C286-10/883) - ICCOP = 220mA Maximum (80C286-12/883).
Large Address Space - 16 Megabytes Physical - 1 Gigabyte Virtual per Task.
Integrated Memory Management, Four-Level Memory Protection and Support for Virtua.
