CG80C286-20

High Performance Microprocessor with Memory Management and Protection

CG80C286-20 Features

* This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.

* Compatible with NMOS 80286/883

* Static CMOS Design for Low Power Operation - ICCSB = 5mA Maximum - ICCOP = 185mA Maximum (80C286-10/883) - ICCOP = 220mA

CG80C286-20 General Description

The Intersil 80C286/883 is a static CMOS version of the NMOS 80286 microprocessor. The 80C286/883 is an advanced, high-performance microprocessor with specially optimized capabilities for multiple user and multi-tasking systems. The 80C286/883 has built-in memory protection that supports operating s.

CG80C286-20 Datasheet (365.46 KB)

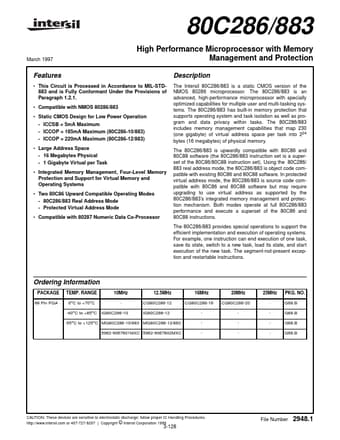

Preview of CG80C286-20 PDF

Datasheet Details

Part number:

CG80C286-20

Manufacturer:

Intersil Corporation

File Size:

365.46 KB

Description:

High performance microprocessor with memory management and protection.
