DG442 Monolithic / Quad SPST / CMOS Analog Switches

DG442 Description

® Data Sheet DG441, DG442 November 20, 2006 FN3281.10 Monolithic, Quad SPST, CMOS Analog Switches The DG441 and DG442 monolithic CMOS analog switc.

DG442 Applications

* The improvements in the DG441 series are made possible by using a high voltage silicon-gate process. An epitaxial layer prevents the latch-up associated with older CMOS technologies. The 44V maximum voltage range permits controlling 40VP-P signals. Power supplies may be single ended from +5V to +34

📥 Download Datasheet

Preview of DG442 PDF

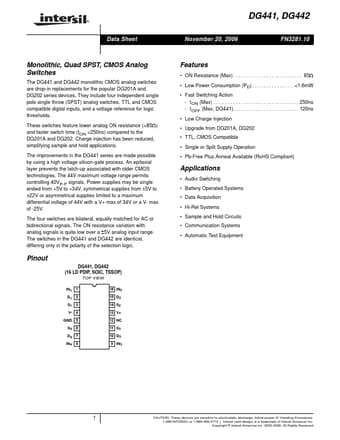

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG442
Manufacturer
Intersil Corporation
File Size
357.19 KB
Datasheet
DG442_IntersilCorporation.pdf
Description
Monolithic / Quad SPST / CMOS Analog Switches
