EL4441

(EL4421 - EL4444) Multiplexed-Input Video Amplifiers

Intersil Corporation

EL4441 Features

* Unity or + 2-gain bandwidth of 80MHz

* 70dB off-channel isolation at 4MHz

* Directly drives high-impedance or 75Ω loads

* 0.02% and 0.02° differential gain and phase errors

* 8ns switching time

* < 100mV switching glitch

* 0.2% loaded gain er

EL4441 General Description

'21, '41, and '43 '22, '42, and '44 IB IFB Input Bias Current, Positive Inputs Only of the '21, '22, '41, '42, and All Inputs of the '43 and '44 Input Bias Currents of Common Feedback Input Offset Currents of the '43 and '44 Gain Error (Note 1) '21 and '22 '41 and '42 IOS EG AVOL Open-Loop Gain.

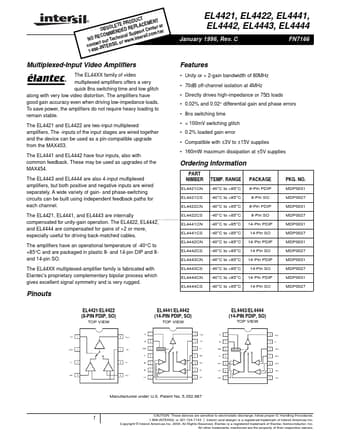

EL4441 Datasheet (439.40 KB)

EL4441 Datasheet Preview — Preview of EL4441 PDF

Datasheet Details

Part number:

EL4441

Manufacturer:

Intersil Corporation

File Size:

439.40 KB

Description:

(el4421 - el4444) multiplexed-input video amplifiers.
