EL4442

(EL4421 - EL4444) Multiplexed-Input Video Amplifiers

EL4442 Features

* Unity or + 2-gain bandwidth of 80MHz

* 70dB off-channel isolation at 4MHz

* Directly drives high-impedance or 75Ω loads

* 0.02% and 0.02° differential gain and phase errors

* 8ns switching time

* < 100mV switching glitch

* 0.2% loaded gain er

EL4442 General Description

'21, '41, and '43 '22, '42, and '44 IB IFB Input Bias Current, Positive Inputs Only of the '21, '22, '41, '42, and All Inputs of the '43 and '44 Input Bias Currents of Common Feedback Input Offset Currents of the '43 and '44 Gain Error (Note 1) '21 and '22 '41 and '42 IOS EG AVOL Open-Loop Gain.

EL4442 Datasheet (439.40 KB)

Preview of EL4442 PDF

Datasheet Details

Part number:

EL4442

Manufacturer:

Intersil Corporation

File Size:

439.40 KB

Description:

(el4421 - el4444) multiplexed-input video amplifiers.
® T NT ODUC E PR PLACEME r at T E L O e E t S R n B e O ED tC MEND al Suppor il.com/tsc M O C ic E rs NO R ouData TechnSheet w.inte t r SIL or ww c a.

📁 Related Datasheet

EL4441 - (EL4421 - EL4444) Multiplexed-Input Video Amplifiers (Intersil Corporation)
® T NT ODUC E PR PLACEME r at T E L O e E t S R n B e O ED tC MEND al Suppor il./tsc M O C ic E rs NO R ouData TechnSheet w.inte t r SIL or ww c a.

EL4441C - Multiplexed-Input Video Amplifiers (Elantec Semiconductor)
EL4421C 22C 41C 42C 43C 44C EL4421C 22C 41C 42C 43C 44C Multiplexed-Input Video Amplifiers Features  Unity or a 2-gain bandwidth of 80 MHz  70 dB .

EL4442C - Multiplexed-Input Video Amplifiers (Elantec Semiconductor)
EL4421C 22C 41C 42C 43C 44C EL4421C 22C 41C 42C 43C 44C Multiplexed-Input Video Amplifiers Features  Unity or a 2-gain bandwidth of 80 MHz  70 dB .

EL4443 - (EL4421 - EL4444) Multiplexed-Input Video Amplifiers (Intersil Corporation)
® T NT ODUC E PR PLACEME r at T E L O e E t S R n B e O ED tC MEND al Suppor il./tsc M O C ic E rs NO R ouData TechnSheet w.inte t r SIL or ww c a.

EL4443C - Multiplexed-Input Video Amplifiers (Elantec Semiconductor)
EL4421C 22C 41C 42C 43C 44C EL4421C 22C 41C 42C 43C 44C Multiplexed-Input Video Amplifiers Features  Unity or a 2-gain bandwidth of 80 MHz  70 dB .

EL4444 - (EL4421 - EL4444) Multiplexed-Input Video Amplifiers (Intersil Corporation)
® T NT ODUC E PR PLACEME r at T E L O e E t S R n B e O ED tC MEND al Suppor il./tsc M O C ic E rs NO R ouData TechnSheet w.inte t r SIL or ww c a.

EL4444C - Multiplexed-Input Video Amplifiers (Elantec Semiconductor)
EL4421C 22C 41C 42C 43C 44C EL4421C 22C 41C 42C 43C 44C Multiplexed-Input Video Amplifiers Features  Unity or a 2-gain bandwidth of 80 MHz  70 dB .

EL4421 - (EL4421 - EL4444) Multiplexed-Input Video Amplifiers (Intersil Corporation)
® T NT ODUC E PR PLACEME r at T E L O e E t S R n B e O ED tC MEND al Suppor il./tsc M O C ic E rs NO R ouData TechnSheet w.inte t r SIL or ww c a.

TAGS

EL4442 EL4421 EL4444 Multiplexed-Input Video Amplifiers Intersil Corporation

Image Gallery

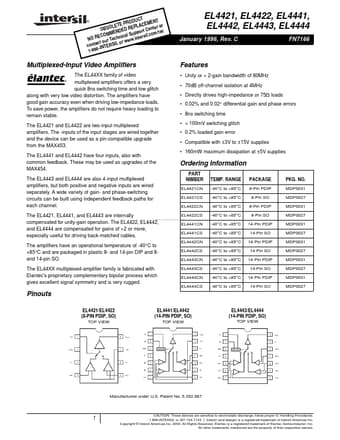

EL4442 Datasheet Preview Page 2 EL4442 Datasheet Preview Page 3
