EL5144 100MHz Single-Supply Rail-to-Rail Amplifiers

EL5144, EL5146, EL5244, EL5246, EL5444 O1APB0RmESE0OELOELpEMDL5LL5L51UlE51iH524C24Tf44446iTEz44e64rSsinRgRElECePO-LESMEAELELMCEuL8L8LEE81p81820MN204p01D00E010lEN1yDT Data Sheet Rail-to-Rail The EL5144 series amplifiers are voltage-feedback, high speed, rail-to-rail amplifiers designed to operate on a single +5V supply. They offer unity gain stability with an unloaded -3dB bandwidth of 100MHz. The input common-mode voltage range extends from the negative rail to within 1.5V of the positive rai.

EL5144 Features

* Rail-to-rail output swing

* -3dB bandwidth = 100MHz

* Single-supply +5V operation

* Power-down to 2.6µA

* Large input common-mode range 0V < VCM < 3.5V

* Diff gain/phase = 0.1%/0.1°

* Low power 35mW per amplifier

* Space-saving SOT23-

EL5144_IntersilCorporation.pdf

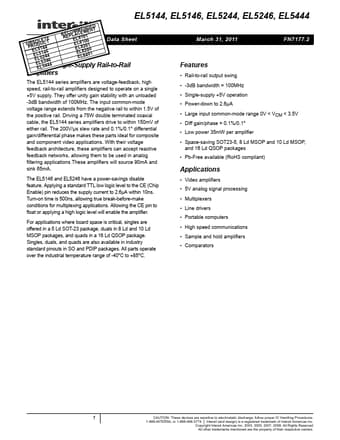

EL5144 Datasheet Preview — Preview of EL5144 PDF
