EL5130 - 300MHz Low Noise Amplifiers

Product Overview

Intersil Corporation

Datasheet Details

Part number	EL5130
Manufacturer	Intersil Corporation
File Size	271.25 KB
Description	300MHz Low Noise Amplifiers
Datasheet	EL5130 Datasheet

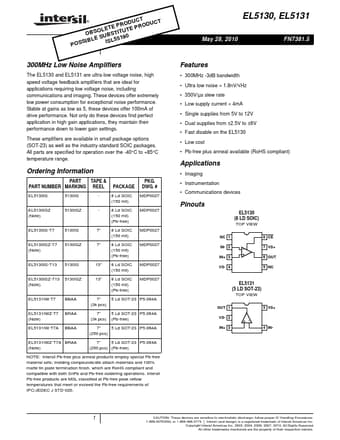

Additional preview pages of the EL5130 datasheet.

Product details

Description

CONDITIONS MIN TYP MAX VOS TCVOS IB IOS TCIOS Offset Voltage Offset Voltage Temperature Coefficient Input Bias Current Input Offset Current Input Bias Current Temperature Coefficient Measured from TMIN to TMAX VIN = 0V VIN = 0V Measured from TMIN to TMAX -0.9 1.5 -500 0.2 0.8 2.27 100 -3 0.9 3.3 500 PSRR CMRR CMIR Power Supply Rejection Ratio Common Mode Rejection Ratio Common Mode Input Range VS = ±4.75V to ±5.25V VIN = ±3.0V Guaranteed by CMRR test 75 90 95 110 ±3 ±3.3 RIN CIN IS

Features

300MHz -3dB bandwidth.
Ultra low noise = 1.8nV/√Hz.
350V/µs slew rate.
Low supply current = 4mA.
Single supplies from 5V to 12V.
Dual supplies from ±2.5V to ±6V.
Fast disable on the EL5130.
Low cost.
Pb-free plus anneal available (RoHS compliant).
