EL5131, EL5130 Datasheet - Intersil Corporation

EL5131 300MHz Low Noise Amplifiers

CONDITIONS MIN TYP MAX VOS TCVOS IB IOS TCIOS Offset Voltage Offset Voltage Temperature Coefficient Input Bias Current Input Offset Current Input Bias Current Temperature Coefficient Measured from TMIN to TMAX VIN = 0V VIN = 0V Measured from TMIN to TMAX -0.9 1.5 -500 0.2 0.8 2.27 100 -3 0.9.
POSSOI®BBLSEOSLUEIDBSTaSLEt5TaP5ITR1SU9Oh0TDeEeUPtCRTODUCT 300MHz Low Noise Amplifiers The EL5130 and EL5131 are ultra-low voltage noise, high speed voltage feedback amplifiers that are ideal for applications requiring low voltage noise, including communications and imaging. These devices offer extremely low power consumption for exceptional noise performance. Stable at gains as low as 5, these devices offer 100mA of drive performance. Not only do these devices find perfect application in high .

EL5131 Features

* 300MHz -3dB bandwidth

* Ultra low noise = 1.8nV/√Hz

* 350V/µs slew rate

* Low supply current = 4mA

* Single supplies from 5V to 12V

* Dual supplies from ±2.5V to ±6V

* Fast disable on the EL5130

* Low cost

* Pb-free plus anne

EL5130_IntersilCorporation.pdf

This datasheet PDF includes multiple part numbers: EL5131, EL5130. Please refer to the document for exact specifications by model.

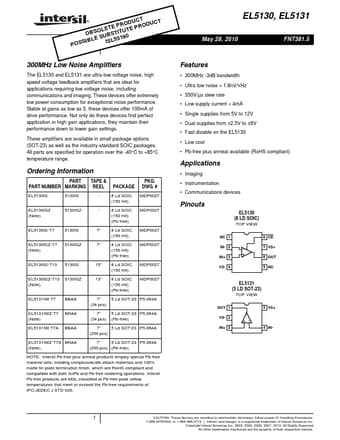

EL5131 Datasheet Preview Page 2 EL5131 Datasheet Preview Page 3

Datasheet Details

Part number:

EL5131, EL5130

Manufacturer:

Intersil Corporation

File Size:

271.25 KB

Description:

300mhz low noise amplifiers.

Note:

This datasheet PDF includes multiple part numbers: EL5131, EL5130.
Please refer to the document for exact specifications by model.
