EL5133, EL5132 Datasheet - Intersil Corporation

EL5133 670MHz Low Noise Amplifiers

CONDITIONS MIN TYP MAX UNIT VOS TCVOS IB IOS TCIOS Offset Voltage Offset Voltage Temperature Coefficient Input Bias Current Input Offset Current Input Bias Current Temperature Coefficient Measured from TMIN to TMAX VIN = 0V VIN = 0V Measured from TMIN to TMAX -1 0.5 1 mV 0.8 µV/°C 8 12 20 µA -.
® Data Sheet EL5132, EL5133 May 4, 2007 FN7382.8 670MHz Low Noise Amplifiers The EL5132 and EL5133 are ultra-low voltage noise, high speed voltage feedback amplifiers that are ideal for applications requiring low voltage noise, including communications and imaging. These devices offer extremely low power consumption for exceptional noise performance. Stable at gains as low as 10, these devices offer 120mA of drive performance. Not only do these devices find perfect application in high gain a.

EL5133 Features

* 670MHz -3dB bandwidth

* Ultra low noise 0.9nV/√Hz

* 1000V/µs slew rate

* Low supply current = 12mA

* Single supplies from 5V to 12V

* Dual supplies from ±2.5V to ±6V

* Fast disable on the EL5132

* Pb-free plus anneal available (RoHS c

EL5132_IntersilCorporation.pdf

This datasheet PDF includes multiple part numbers: EL5133, EL5132. Please refer to the document for exact specifications by model.

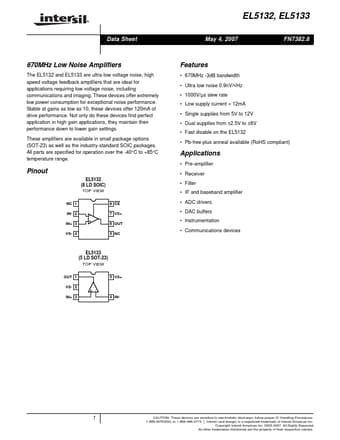

EL5133 Datasheet Preview Page 2 EL5133 Datasheet Preview Page 3

Datasheet Details

Part number:

EL5133, EL5132

Manufacturer:

Intersil Corporation

File Size:

6.25 MB

Description:

670mhz low noise amplifiers.

Note:

This datasheet PDF includes multiple part numbers: EL5133, EL5132.
Please refer to the document for exact specifications by model.
