EL5134 Low Noise Amplifiers

CONDITIONS MIN TYP MAX UNIT VOS Offset Voltage EL5234 -1 0.2 1 mV 0.3 ±1.5 mV TCVOS IB IOS TCIOS Offset Voltage Temperature Coefficient Input Bias Curr.

® Data Sheet EL5134, EL5135, EL5234, EL5235 March 9, 2006 FN7383.3 650MHz, Gain of 5, Low Noise Amplifiers The EL5134, EL5135, EL5234, and EL5235 are ultra-low voltage noise, high speed voltage feedback amplifiers that are ideal for applications requiring low voltage noise, including communications and imaging. These devices offer extremely low power consumption for exceptional noise performance. Stable at gains as low as 5, these devices offer 100mA of drive performance. Not only do these d.

EL5134 Features

* 650MHz -3dB bandwidth

* Av=+5 stable

* Ultra low noise 1.5nV/√Hz and 0.9pA/√Hz

* 450V/µs slew rate

* Low supply current = 6.7mA per amplifier

* Single supplies from 5V to 12V

* Dual supplies from ±2.5V to ±5V

* Fast disable on the EL5

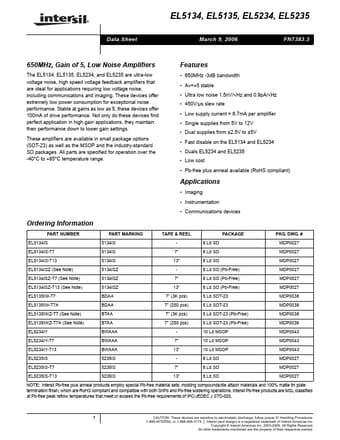

EL5134 Datasheet (1.39 MB)
