FSPS230F4 - N-Channel Power MOSFET

Intersil Corporation

📥 Download Datasheet

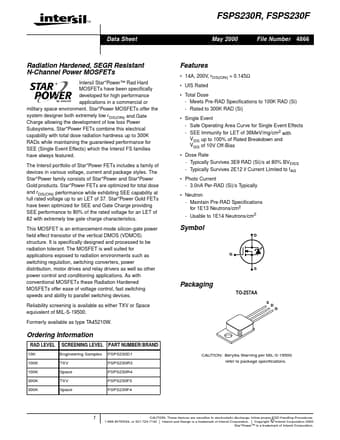

FSPS230F4 Datasheet Preview — Preview of FSPS230F4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FSPS230F4
Manufacturer	Intersil Corporation
File Size	80.36 KB
Description	N-Channel Power MOSFET
Datasheet	FSPS230F4_IntersilCorporation.pdf

FSPS230F4 Product details

Features

14A, 200V, rDS(ON) = 0.145Ω.
UIS Rated.
Total Dose - Meets Pre-RAD Speciﬁcations to 100K RAD (Si) - Rated to 300K RAD (Si).
Single Event - Safe Operating Area Curve for Single Event Effects - SEE Immunity for LET of 36MeV/mg/cm2 with VDS up to 100% of Rated Breakdown and VGS of 10V Off-Bias.
Dose Rate - Typically Survives 3E9 RAD (Si)/s at 80% BVDSS - Typically Survives 2E12 if Current Limited to IAS.
Photo Current - 3.0nA Per-RAD (Si)/s Typ.
