FSPS230R3 - N-Channel Power MOSFET

Datasheet Summary

Features

  • 14A, 200V, rDS(ON) = 0.145Ω.
  • UIS Rated.
  • Total Dose - Meets Pre-RAD Specifications to 100K RAD (Si) - Rated to 300K RAD (Si).
  • Single Event - Safe Operating Area Curve for Single Event Effects - SEE Immunity for LET of 36MeV/mg/cm2 with VDS up to 100% of Rated Breakdown and VGS of 10V Off-Bias.
  • Dose Rate - Typically Survives 3E9 RAD (Si)/s at 80% BVDSS - Typically Survives 2E12 if Current Limited to IAS.
  • Photo Current - 3.0nA Per-RAD (Si)/s Typ.

📥 Download Datasheet

Datasheet preview – FSPS230R3

Datasheet Details

Part number FSPS230R3
Manufacturer Intersil Corporation
File Size 80.36 KB
Description N-Channel Power MOSFET
Datasheet download datasheet FSPS230R3 Datasheet

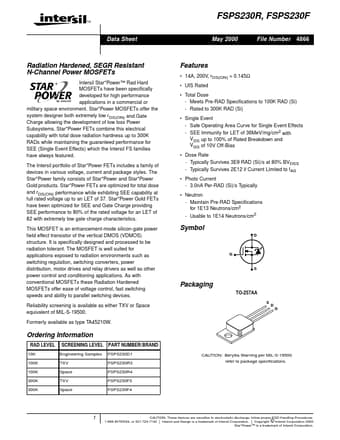

Additional preview pages of the FSPS230R3 datasheet.

📁 Similar Datasheet

  • FSP065-AAB - Switching Power Supply (Sparkle Power)
  • FSP084-DMAA1 - 84 Watts Power Adapter (Sparkle Power)
  • FSP084-DMBA1 - 84 Watts Power Adapter (Sparkle Power)
  • FSP090-1ADC21 - Switching Power Supply (Sparkle Power)
  • FSP090-1ADC21 - Switching Power Supply (Sparkle Power)
  • FSP1084 - 5A LOW DROPOUT LINEAR REGULATOR (FOSLINK SEMICONDUCTOR)
  • FSP1117 - 1A LOW DROPOUT LINEAR REGULATOR (FOSLINK SEMICONDUCTOR)
  • FSP150 - 150 WATT SWITCHING POWER SUPPLIES (Fortron)
  • FSP150-50LG - Power Supply (FSP)
  • FSP150-50LH - 150 Watts Flex ATX Switching Power Supply (Sparkle Power)
Other Datasheets by Intersil Corporation

Full PDF Text Transcription

Click to expand full text
FSPS230R, FSPS230F TM Data Sheet May 2000 File Number 4866 Radiation Hardened, SEGR Resistant N-Channel Power MOSFETs Intersil Star*Power™ Rad Hard MOSFETs have been specifically developed for high performance applications in a commercial or military space environment. Star*Power MOSFETs offer the system designer both extremely low rDS(ON) and Gate Charge allowing the development of low loss Power Subsystems. Star*Power FETs combine this electrical capability with total dose radiation hardness up to 300K RADs while maintaining the guaranteed performance for SEE (Single Event Effects) which the Intersil FS families have always featured. The Intersil portfolio of Star*Power FETs includes a family of devices in various voltage, current and package styles.
