HA4-2546883, Wideband Two Quadrant Analog Multiplier (Voltage Output)

HA2546/883 July 1994 Wideband Two Quadrant Analog Multiplier (Voltage Output) .
The HA-2546/883 is a monolithic, high speed, two quadrant, analog multiplier constructed in the Intersil Dielectrically Isolated High Frequency Proces.

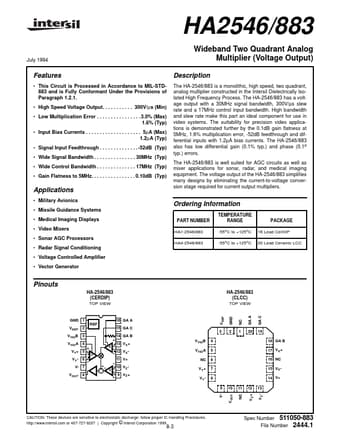

datasheet Preview Page 1 from Datasheet4u.com

HA4-2546883_IntersilCorporation.pdf

HA4-2546883 Datasheet Preview — Preview of HA4-2546883 PDF

Datasheet Details

Part number:

HA4-2546883

Manufacturer:

Intersil Corporation

File Size:

534.47 KB

Description:

Wideband Two Quadrant Analog Multiplier (Voltage Output)

Features

* This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
* High Speed Voltage Output
* . 300V/µs (Min)
* Low Multiplication Error
* .3.0% (Max) 1.6% (Typ)
* Input B

Applications

* is demonstrated further by the 0.1dB gain ﬂatness at 5MHz, 1.6% multiplication error, -52dB feedthrough and differential inputs with 1.2µA bias currents. The HA-2546/883 also has low differential gain (0.1% typ. ) and phase (0.1o typ. ) errors. The HA-2546/883 is well suited for AGC circuits as well a
