HA4P5002-5 110MHz/ High Slew Rate/ High Output Current Buffer

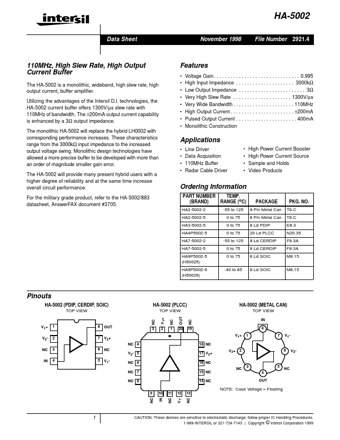

HA-5002 Data Sheet November 1998 File Number 2921.4 110MHz, High Slew Rate, High Output Current Buffer The HA-5002 is a monolithic, wideband, high slew rate, high output current, buffer ampliﬁer. Utilizing the advantages of the Intersil D.I. technologies, the HA-5002 current buffer offers 1300V/µs slew rate with 110MHz of bandwidth. The ±200mA output current capability is enhanced by a 3Ω output impedance. The monolithic HA-5002 will replace the hybrid LH0002 with corresponding performance incr.

HA4P5002-5_IntersilCorporation.pdf

HA4P5002-5 Datasheet Preview — Preview of HA4P5002-5 PDF

Datasheet Details

Part number:

HA4P5002-5

Manufacturer:

Intersil Corporation

File Size:

820.55 KB

Description:

110mhz/ high slew rate/ high output current buffer.
