HA5351, HA5 64ns Sample and Hold Amplifier

Intersil Corporation

Description

HA5351 Data Sheet May 1999 File Number 3690.7 64ns Sample and Hold Ampliﬁer The HA5351 is a fast acquisition, wide bandwidth sample and hold ampliﬁer.

📥 Download Datasheet

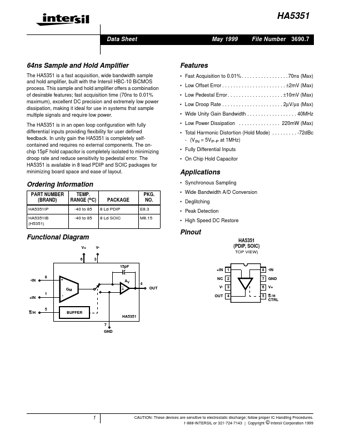

HA5351 Datasheet Preview — This datasheet PDF includes multiple part numbers: HA5351, HA5. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HA5351, HA5
Manufacturer: Intersil Corporation
File Size: 95.83 KB
Datasheet: HA5-351IB.pdf
Description: 64ns Sample and Hold Amplifier
Note: This datasheet PDF includes multiple part numbers: HA5351, HA5.
Please refer to the document for exact specifications by model.

Features

* fast acquisition time (70ns to 0.01% maximum), excellent DC precision and extremely low power dissipation, making it ideal for use in systems that sample multiple signals and require low power. The HA5351 is in an open loop conﬁguration with fully differential inputs providing ﬂexibility for user d

Applications

* Synchronous Sampling
* Wide Bandwidth A/D Conversion
* Deglitching
* Peak Detection
* High Speed DC Restore Ordering Information PART NUMBER (BRAND) HA5351IP HA5351IB (H5351) TEMP. RANGE (oC) -40 to 85 -40 to 85 PACKAGE 8 Ld PDIP 8 Ld SOIC PKG. NO. E8.3 M8.
