HC3-5502B1-5

SLIC Subscriber Line Interface

HC3-5502B1-5 Features

* Low Cost Version of HC-5502B

* Capable of 12V or 5V (VB+) Operation

* Monolithic Integrated Device

* DI High Voltage Process

* Compatible With Worldwide PBX Performance Requirements

* Controlled Supply of Battery Feed Current for Short Loops (30mA)

HC3-5502B1-5 General Description

28 PIN PLCC 2 24 PIN DIP/SOIC 1 SYMBOL TIP DESCRIPTION An analog input connected to the TIP (more positive) side of the subscriber loop through a 150Ω feed resistor and a ring relay contact. Functions with the Ring terminal to receive voice signals from the telephone and for loop monitoring process.

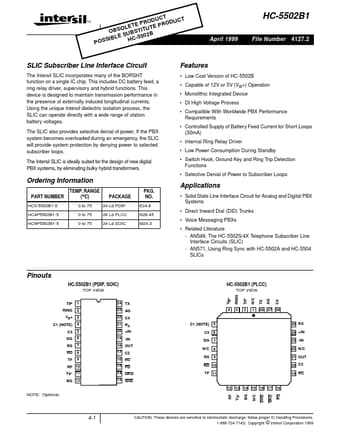

HC3-5502B1-5 Datasheet (132.82 KB)
