HC3-5504B-5 Datasheet - Intersil Corporation

HC3-5504B-5, EIA/ITU PABX SLIC

HC-5504B Data Sheet July 1998 File Number 2886.5 EIA/ITU PABX SLIC with 40mA Loop Feed The Intersil SLIC incorporates many of the BORSHT functions on.
28 PIN PLCC 2 24 PIN DIP/SOIC 1 SYMBOL TIP DESCRIPTION An analog input connected to the TIP (more positive) side of the subscriber loop through a 150.

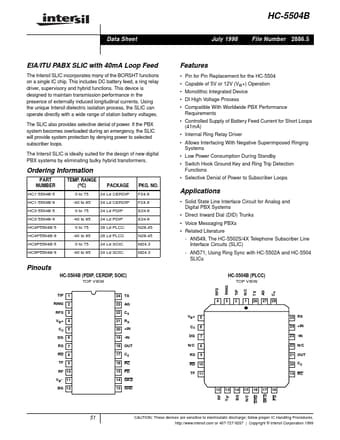

datasheet Preview Page 1 from Datasheet4u.com

HC3-5504B-5_IntersilCorporation.pdf

HC3-5504B-5 Datasheet Preview — Preview of HC3-5504B-5 PDF

Datasheet Details

Part number:

HC3-5504B-5

Manufacturer:

Intersil Corporation

File Size:

87.27 KB

Description:

EIA/ITU PABX SLIC

Features

* Pin for Pin Replacement for the HC-5504
* Capable of 5V or 12V (VB+) Operation
* Monolithic Integrated Device
* DI High Voltage Process
* Compatible With Worldwide PBX Performance Requirements
* Controlled Supply of Battery Feed Current for Short Loo

Applications

* Solid State Line Interface Circuit for Analog and Digital PBX Systems
* Direct Inward Dial (DID) Trunks
* Voice Messaging PBXs
* Related Literature - AN549, The HC-5502S/4X Telephone Subscriber Line Interface Circuits (SLIC) - AN571, Using Ring Sync with HC-5502A an
