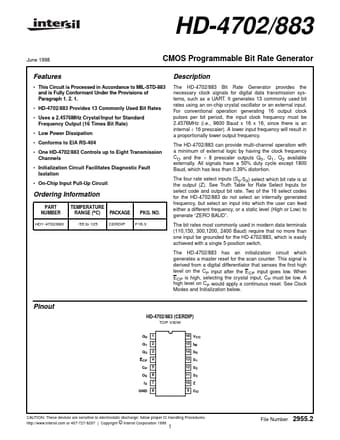

HD-4702 Datasheet - Intersil Corporation

HD-4702 - CMOS Programmable Bit Rate Generator

The HD-4702/883 Bit Rate Generator provides the necessary clock signals for digital data transmission systems, such as a UART. It generates 13 commonly used bit rates using an on-chip crystal oscillator or an external input. For conventional operation generating 16 output clock pulses per bit period.

HD-4702 Features

* This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1. 2. 1.

* HD-4702/883 Provides 13 Commonly Used Bit Rates

* Uses a 2.4576MHz Crystal/Input for Standard Frequency Output (16 Times Bit Rate)

* Low Power
