HI7106

A/D Converter

Intersil Corporation

HI7106 Features

* auto-zero to less than 10µV, zero drift of less than 1µV/oC, input bias current of 10pA (Max), and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other b

HI7106 General Description

The Intersil HI7106 is a high performance, low power, 31/2 digit A/D converter. Included are seven segment decoders, display drivers, a reference, and a clock. The HI7106 is designed to interface with a liquid crystal display (LCD) and includes a multiplexed backplane drive. The HI7106 brings togeth.

HI7106 Datasheet (130.00 KB)

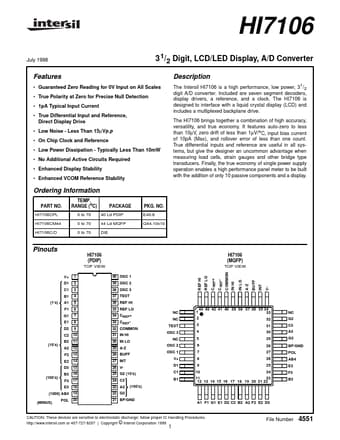

HI7106 Datasheet Preview — Preview of HI7106 PDF

Datasheet Details

Part number:

HI7106

Manufacturer:

Intersil Corporation

File Size:

130.00 KB

Description:

A/d converter.
