HI7191 Datasheet - Renesas

HI7191 Sigma Delta A/D Converter

HI7191 24-Bit, High Precision, Sigma Delta A/D Converter The Intersil HI7191 is a monolithic instrumentation, sigma delta A/D converter which operates from 5V supplies. Both the signal and reference inputs are fully differential for maximum flexibility and performance. An internal Programmable Gain Instrumentation Amplifier (PGIA) provides input gains from 1 to 128 eliminating the need for external pre-amplifiers. The on-demand converter auto-calibrate function is capable of removing offset an.

HI7191 Features

* The On-chip Calibration Registers allow the user to read and write calibration data. Ordering Information PART NUMBER PART MARKING TEMP. RANGE (°C) PKG. PACKAGE DWG. # HI7191IP HI7191IP -40 to 85 20 Ld PDIP E20.3 HI7191IPZ HI7191IPZ (See Note) -40 to 85 20 Ld PDIP

* E20.3 (Pb-free) HI

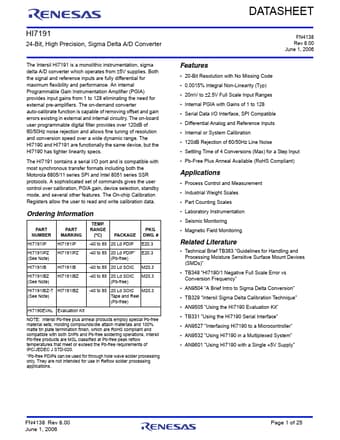

HI7191 Datasheet (1.24 MB)
