HIN230

+5V Powered RS-232 Transmitters/Receivers

Intersil Corporation

HIN230 Features

* Meets All RS-232E and V.28 Speciﬁcations

* Requires Only Single +5V Power Supply - (+5V and +12V - HIN231 and HIN239)

* High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 120kbps

* HIN233 and HIN235 Require No External Capacitors

* Onboard V

HIN230 General Description

PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT EN SHUTDOWN NC Power Supply Input 5V ±10%. Internally generated positive supply (+10V nominal), HIN231 and HIN239 require +7.5V to +13.2V. Internally generated negative supply (-10V nominal). Ground lead. Connect to 0V. External capacitor (+ terminal) i.

HIN230 Datasheet (379.85 KB)

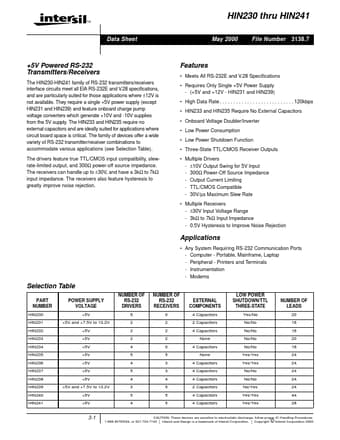

HIN230 Datasheet Preview — Preview of HIN230 PDF

Datasheet Details

Part number:

HIN230

Manufacturer:

Intersil Corporation

File Size:

379.85 KB

Description:

+5v powered rs-232 transmitters/receivers.
HIN230 thru HIN241 TM Data Sheet May 2000 File Number 3138.7 +5V Powered RS-232 Transmitters/Receivers The HIN230-HIN241 family of RS-232 transmi.
