HIN233, HIN, +5V Powered RS-232 Transmitters/Receivers

HIN230 thru HIN241 TM Data Sheet May 2000 File Number 3138.7 +5V Powered RS-232 Transmitters/Receivers The HIN230-HIN241 family of RS-232 transmi.
PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT EN SHUTDOWN NC Power Supply Input 5V ±10%.

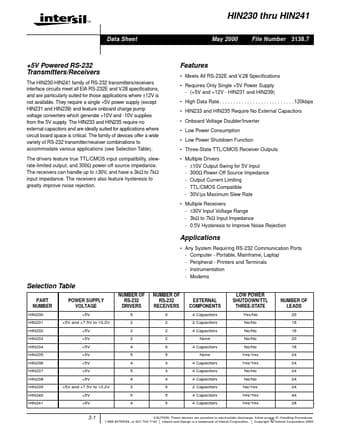

datasheet Preview Page 1 from Datasheet4u.com

HIN-232.pdf

HIN233 Datasheet Preview — This datasheet PDF includes multiple part numbers: HIN233, HIN. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HIN233, HIN

Manufacturer:

Intersil Corporation

File Size:

379.85 KB

Description:

+5V Powered RS-232 Transmitters/Receivers

Note:

This datasheet PDF includes multiple part numbers: HIN233, HIN.
Please refer to the document for exact specifications by model.

Features

* Meets All RS-232E and V.28 Speciﬁcations
* Requires Only Single +5V Power Supply - (+5V and +12V - HIN231 and HIN239)
* High Data Rate
* . . 120kbps
* HIN233 and HIN235 Require No External Capacitors
* Onboard Voltag
