HMP8191 Datasheet - Intersil Corporation

NTSC/PAL Video Encoder

HMP8191 Features

* (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation

* BT.601 and Square Pixel Operation

* Digital Input Formats - 8-Bit, 16-Bit 4:2:2 YCbCr - 8-Bit BT.656

* Composite and Y/C Analog Outputs

* Flexible Video Timing Control - Timing Master or Slave - Selectab

HMP8191 General Description

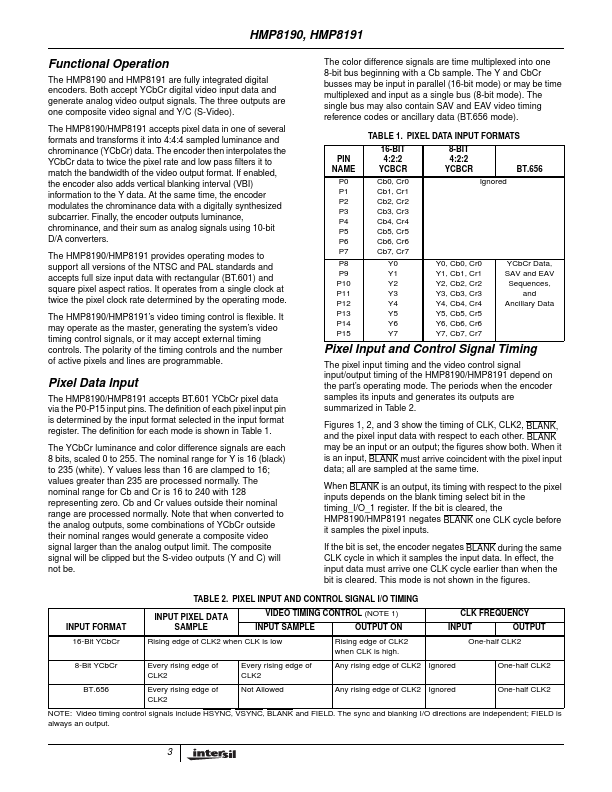

are in the Applications section. MACROVISION v7.01 No Yes TEMP. RANGE (oC) 0 to 70 0 to 70 PACKAGE 64 Ld PQFP (Note 2) 64 Ld PQFP (Note 2) PKG. NO. Q64.14x14 Q64.14x14 Daughter Card Evaluation Platform. 1 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling .

HMP8191 Datasheet (227.11 KB)

HMP8191 Datasheet Preview — Preview of HMP8191 PDF

Datasheet Details

Part number:

HMP8191

Manufacturer:

Intersil Corporation

File Size:

227.11 KB

Description:

Ntsc/pal video encoder.
HMP8190, HMP8191 Data Sheet May 1999 File Number 4499.1 NTSC/PAL Video Encoder The HMP8190 and HMP8191 are NTSC and PAL encoders designed for use in .
